Vibration isolation is the process of isolating an object, such as a piece of equipment, from the source of vibrations.
Vibration is undesirable in many domains, primarily engineered systems and habitable spaces, and methods have been developed to prevent the transfer of vibration to such systems. Vibrations propagate via mechanical waves and certain mechanical linkages conduct vibrations more efficiently than others. Passive vibration isolation makes use of materials and mechanical linkages that absorb and damp these mechanical waves. Active vibration isolation involves sensors and actuators that produce disruptive interference that cancels-out incoming vibration.
Maps, Directions, and Place Reviews
Passive isolation
"Passive vibration isolation" refers to vibration isolation or mitigation of vibrations by passive techniques such as rubber pads or mechanical springs, as opposed to "active vibration isolation" or "electronic force cancellation" employing electric power, sensors, actuators, and control systems.
Passive vibration isolation is a vast subject, since there are many types of passive vibration isolators used for many different applications. A few of these applications are for industrial equipment such as pumps, motors, HVAC systems, or washing machines; isolation of civil engineering structures from earthquakes (base isolation), sensitive laboratory equipment, valuable statuary, and high-end audio.
A basic understanding of how passive isolation works, the more common types of passive isolators, and the main factors that influence the selection of passive isolators:
Common passive isolation systems
How passive isolation works
A passive isolation system, such as a shock mount, in general contains mass, spring, and damping elements and moves as a harmonic oscillator. The mass and spring stiffness dictate a natural frequency of the system. Damping causes energy dissipation and has a secondary effect on natural frequency.
Every object on a flexible support has a fundamental natural frequency. When vibration is applied, energy is transferred most efficiently at the natural frequency, somewhat efficiently below the natural frequency, and with increasing inefficiency (decreasing efficiency) above the natural frequency. This can be seen in the transmissibility curve, which is a plot of transmissibility vs. frequency.
Here is an example of a transmissibility curve. Transmissibility is the ratio of vibration of the isolated surface to that of the source. Vibrations are never completely eliminated, but they can be greatly reduced. The curve below shows the typical performance of a passive, negative-stiffness isolation system with a natural frequency of 0.5 Hz. The general shape of the curve is typical for passive systems. Below the natural frequency, transmissibility hovers near 1. A value of 1 means that vibration is going through the system without being amplified or reduced. At the resonant frequency, energy is transmitted efficiently, and the incoming vibration is amplified. Damping in the system limits the level of amplification. Above the resonant frequency, little energy can be transmitted, and the curve rolls off to a low value. A passive isolator can be seen as a mechanical low-pass filter for vibrations.
In general, for any given frequency above the natural frequency, an isolator with a lower natural frequency will show greater isolation than one with a higher natural frequency. The best isolation system for a given situation depends on the frequency, direction, and magnitude of vibrations present and the desired level of attenuation of those frequencies.
All mechanical systems in the real world contain some amount of damping. Damping dissipates energy in the system, which reduces the vibration level which is transmitted at the natural frequency. The fluid in automotive shock absorbers is a kind of damper, as is the inherent damping in elastomeric (rubber) engine mounts.
Damping is used in passive isolators to reduce the amount of amplification at the natural frequency. However, increasing damping tends to reduce isolation at the higher frequencies. As damping is increased, transmissibility roll-off decreases. This can be seen in the chart below.
Passive isolation operates in both directions, isolating the payload from vibrations originating in the support, and also isolating the support from vibrations originating in the payload. Large machines such as washers, pumps, and generators, which would cause vibrations in the building or room, are often isolated from the floor. However, there are a multitude of sources of vibration in buildings, and it is often not possible to isolate each source. In many cases, it is most efficient to isolate each sensitive instrument from the floor. Sometimes it is necessary to implement both approaches.
Factors influencing the selection of passive vibration isolators
- Characteristics of item to be isolated
- Size: The dimensions of the item to be isolated help determine the type of isolation which is available and appropriate. Small objects may use only one isolator, while larger items might use a multiple-isolator system.
- Weight: The weight of the object to be isolated is an important factor in choosing the correct passive isolation product. Individual passive isolators are designed to be used with a specific range of loading.
- Movement: Machines or instruments with moving parts may affect isolation systems. It is important to know the mass, speed, and distance traveled of the moving parts.
- Operating Environment
- Industrial: This generally entails strong vibrations over a wide band of frequencies and some amount of dust.
- Laboratory: Labs are sometimes troubled by specific building vibrations from adjacent machinery, foot traffic, or HVAC airflow.
- Indoor or outdoor: Isolators are generally designed for one environment or the other.
- Corrosive/non-corrosive: Some indoor environments may present a corrosive danger to isolator components due to the presence of corrosive chemicals. Outdoors, water and salt environments need to be considered.
- Clean room: Some isolators can be made appropriate for clean room.
- Temperature: In general, isolators are designed to be used in the range of temperatures normal for human environments. If a larger range of temperatures is required, the isolator design may need to be modified.
- Vacuum: Some isolators can be used in a vacuum environment. Air isolators may have leakage problems. Vacuum requirements typically include some level of clean room requirement and may also have a large temperature range.
- Magnetism: Some experimentation which requires vibration isolation also requires a low-magnetism environment. Some isolators can be designed with low-magnetism components.
- Acoustic noise: Some instruments are sensitive to acoustic vibration. In addition, some isolation systems can be excited by acoustic noise. It may be necessary to use an acoustic shield. Air compressors can create problematic acoustic noise, heat, and airflow.
- Static or dynamic loads: This distinction is quite important as isolators are designed for a certain type and level of loading.
- Cost:
- Cost of providing isolation: Costs include the isolation system itself, whether it is a standard or custom product; a compressed air source if required; shipping from manufacturer to destination; installation; maintenance; and an initial vibration site survey to determine the need for isolation.
- Relative costs of different isolation systems: Inexpensive shock mounts may need to be replaced due to dynamic loading cycles. A higher level of isolation which is effective at lower vibration frequencies and magnitudes generally costs more. Prices can range from a few dollars for bungee cords to millions of dollars for some space applications.
- Adjustment: Some isolation systems require manual adjustment to compensate for changes in weight load, weight distribution, temperature, and air pressure, whereas other systems are designed to automatically compensate for some or all of these factors.
- Maintenance: Some isolation systems are quite durable and require little or no maintenance. Others may require periodic replacement due to mechanical fatigue of parts or aging of materials.
- Size Constraints: The isolation system may have to fit in a restricted space in a laboratory or vacuum chamber, or within a machine housing.
- Nature of vibrations to be isolated or mitigated
- Frequencies: If possible, it is important to know the frequencies of ambient vibrations. This can be determined with a site survey or accelerometer data processed through FFT analysis.
- Amplitudes: The amplitudes of the vibration frequencies present can be compared with required levels to determine whether isolation is needed. In addition, isolators are designed for ranges of vibration amplitudes. Some isolators are not effective for very small amplitudes.
- Direction: Knowing whether vibrations are horizontal or vertical can help to target isolation where it is needed and save money.
- Vibration specifications of item to be isolated: Many instruments or machines have manufacturer-specified levels of vibration for the operating environment. The manufacturer may not guarantee the proper operation of the instrument if vibration exceeds the spec.
Comparison of passive isolators
Negative-stiffness vibration isolator
Negative-Stiffness-Mechanism (NSM) vibration isolation systems offer a unique passive approach for achieving low vibration environments and isolation against sub-Hertz vibrations. "Snap-through" or "over-center" NSM devices are used to reduce the stiffness of elastic suspensions and create compact six-degree-of-freedom systems with low natural frequencies. Practical systems with vertical and horizontal natural frequencies as low as 0.2 to 0.5 Hz are possible. Electro-mechanical auto-adjust mechanisms compensate for varying weight loads and provide automatic leveling in multiple-isolator systems, similar to the function of leveling valves in pneumatic systems. All-metal systems can be configured which are compatible with high vacuums and other adverse environments such as high temperatures.
These isolation systems enable vibration-sensitive instruments such as scanning probe microscopes, micro-hardness testers and scanning electron microscopes to operate in severe vibration environments sometimes encountered, for example, on upper floors of buildings and in clean rooms. Such operation would not be practical with pneumatic isolation systems. Similarly, they enable vibration-sensitive instruments to produce better images and data than those achievable with pneumatic isolators.
The theory of operation of NSM vibration isolation systems is summarized, some typical systems and applications are described, and data on measured performance is presented. The theory of NSM isolation systems is explained in References 1 and 2. It is summarized briefly for convenience.
Vertical-motion isolation
A vertical-motion isolator is shown . It uses a conventional spring connected to an NSM consisting of two bars hinged at the center, supported at their outer ends on pivots, and loaded in compression by forces P. The spring is compressed by weight W to the operating position of the isolator, as shown in Figure 1. The stiffness of the isolator is K=KS-KN where KS is the spring stiffness and KN is the magnitude of a negative-stiffness which is a function of the length of the bars and the load P. The isolator stiffness can be made to approach zero while the spring supports the weight W.
Horizontal-motion isolation
A horizontal-motion isolator consisting of two beam-columns is illustrated in Figure. 2. Each beam-column behaves like two fixed-free beam columns loaded axially by a weight load W. Without the weight load the beam-columns have horizontal stiffness KS With the weight load the lateral bending stiffness is reduced by the "beam-column" effect. This behavior is equivalent to a horizontal spring combined with an NSM so that the horizontal stiffness is K=KS-KN, and KN is the magnitude of the beam-column effect. Horizontal stiffness can be made to approach zero by loading the beam-columns to approach their critical buckling load.
Six-degree-of-freedom (six-DOF) isolation
A six-DOF NSM isolator typically uses three isolators stacked in series: a tilt-motion isolator on top of a horizontal-motion isolator on top of a vertical-motion isolator. Figure 3 shows a schematic of a vibration isolation system consisting of a weighted platform supported by a single six-DOF isolator incorporating the isolators of Figures 1 and 2. Flexures are used in place of the hinged bars shown in Figure 1. A tilt flexure serves as the tilt-motion isolator. A vertical-stiffness adjustment screw is used to adjust the compression force on the negative-stiffness flexures thereby changing the vertical stiffness. A vertical load adjustment screw is used to adjust for varying weight loads by raising or lowering the base of the support spring to keep the flexures in their straight, unbent operating positions.
Vibration isolation of supporting joint
The equipment or other mechanical components are necessarily linked to surrounding objects (the supporting joint - with the support; the unsupporting joint - the pipe duct or cable), thus presenting the opportunity for unwanted transmission of vibrations. Using a suitably designed vibration-isolator (absorber), vibration isolation of the supporting joint is realized. The accompanying illustration shows the attenuation of vibration levels, as measured before installation of the functioning gear on a vibration isolator as well as after installation, for a wide range of frequencies.
The vibration isolator
This is defined as a device that reflects and absorbs waves of oscillatory energy, extending from a piece of working machinery or electrical equipment, and with the desired effect being vibration insulation. The goal is to establish vibration isolation between a body transferring mechanical fluctuations and a supporting body (for example, between the machine and the foundation). The illustration shows a vibration isolator from the series «??» (~"VI" in Roman characters), as used in shipbuilding in Russia, for example the submarine "St.Petersburg" (Lada). The depicted «??» devices allow loadings ranging from 5, 40 and 300 kg. They differ in their physical sizes, but all share the same fundamental design. The structure consists of a rubber envelope that is internally reinforced by a spring. During manufacture, the rubber and the spring are intimately and permanently connected as a result of the vulcanization process that is integral to the processing of the crude rubber material. Under action of weight loading of the machine, the rubber envelope deforms, and the spring is compressed or stretched. Therefore, in the direction of the spring's cross section, twisting of the enveloping rubber occurs. The resulting elastic deformation of the rubber envelope results in very effective absorption of the vibration. This absorption is crucial to reliable vibration insulation, because it averts the potential for resonance effects. The amount of elastic deformation of the rubber largely dictates the magnitude of vibration absorption that can be attained; the entire device (including the spring itself) must be designed with this in mind. The design of the vibration isolator must also take into account potential exposure to shock loadings, in addition to the routine everyday vibrations. Lastly, the vibration isolator must also be designed for long-term durability as well as convenient integration into the environment in which it is to be used. Sleeves and flanges are typically employed in order to enable the vibration isolator to be securely fastened to the equipment and the supporting foundation.
Vibration isolation of unsupporting joint
Vibration isolation of unsupporting joint is realized in the device named branch pipe a of isolating vibration.
Branch pipe a of isolating vibration
Branch pipe a of isolating vibration is a part of a tube with elastic walls for reflection and absorption of waves of the oscillatory energy extending from the working pump over wall of the pipe duct. Is established between the pump and the pipe duct. On an illustration is presented the image a vibration-isolating branch pipe of a series «????». In a structure is used the rubber envelope, which is reinforced by a spring. Properties of an envelope are similar envelope to an isolator vibration. Has the device reducing axial effort from action of internal pressure up to zero.
Subframe isolation
Another technique used to increase isolation is to use an isolated subframe. This splits the system with an additional mass/spring/damper system. This doubles the high frequency attenuation rolloff, at the cost of introducing additional low frequency modes which may cause the low frequency behaviour to deteriorate. This is commonly used in the rear suspensions of cars with Independent Rear Suspension (IRS), and in the front subframes of some cars. The graph (see illustration) shows the force into the body for a subframe that is rigidly bolted to the body compared with the red curve that shows a compliantly mounted subframe. Above 42 Hz the compliantly mounted subframe is superior, but below that frequency the bolted in subframe is better.

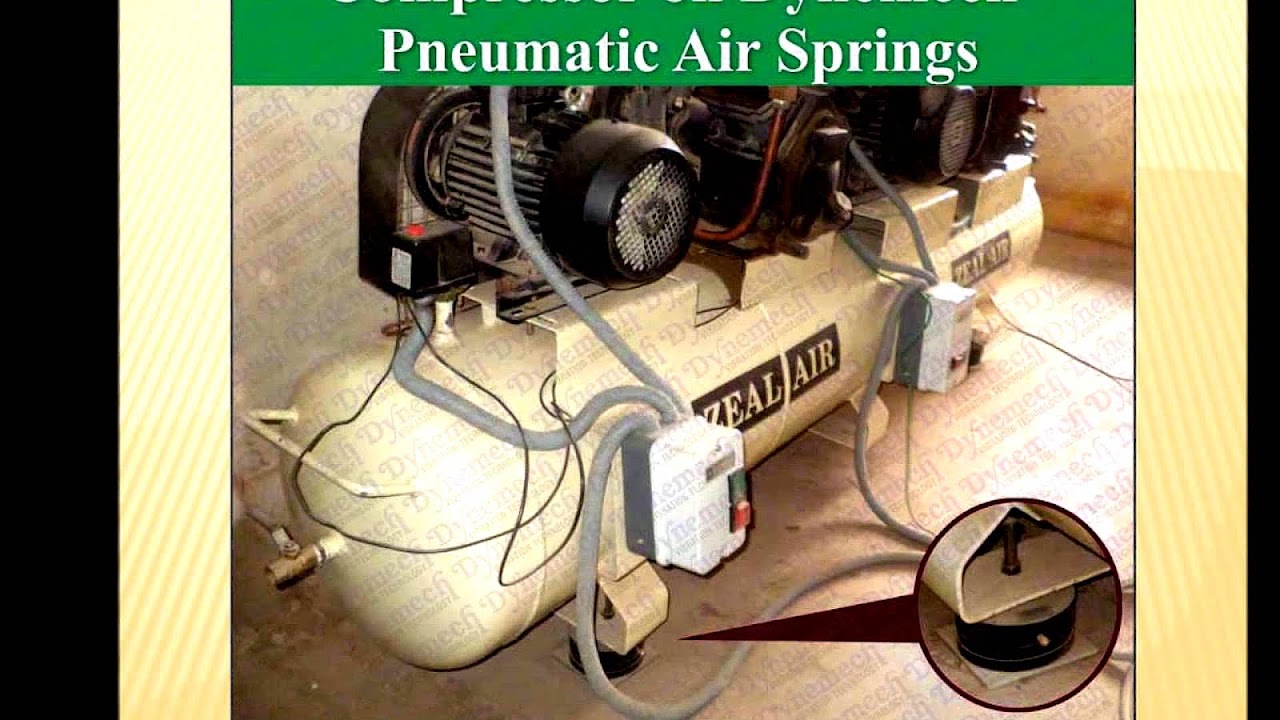

Air Compressor Rubber Mounts Video
Semi-Active isolation
Semiactive vibration isolators have received attention because they consume less power than active devices and controllability over passive systems.
Active isolation
Active vibration isolation systems contain, along with the spring, a feedback circuit which consists of a sensor (for example a piezoelectric accelerometer or a geophone), a controller, and an actuator. The acceleration (vibration) signal is processed by a control circuit and amplifier. Then it feeds the electromagnetic actuator, which amplifies the signal. As a result of such a feedback system, a considerably stronger suppression of vibrations is achieved compared to ordinary damping. Active isolation today is used for applications where structures smaller than a micrometer have to be produced or measured. A couple of companies produce active isolation products as OEM for research, metrology, lithography and medical systems. Another important application is the semiconductor industry. In the microchip production, the smallest structures today are below 20 nm, so the machines which produce and check them have to oscillate much less.
Sensors for active isolation
- Piezoelectric accelerometers and force sensors
- MEM accelerometers
- Geophones
- Proximity sensors
- Interferometers
Actuators for active isolation
- Linear motors
- Pneumatic actuators
- Piezoelectric motors
